• Repeaters • Hubs • Bridges/Switches • Routers • Gateways • Multiplexers
|
|
|
Repeaters
• Signal diminishes over distance due to attenuation
• A device used to extend the distance of a network
• Regenerates the electrical signal on the network media
|
Hubs
• Basically a multiport repeater
• Connects a number of computers together in a star
• May have both coax or UPT connections to enable connection to another type of segment
|
|
|
|

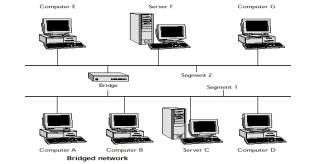

Bridges
• Connects two network segments together
• Filters traffic that passes between the segments
• Only allows traffic destined to other segment
• Reduces congestion
|

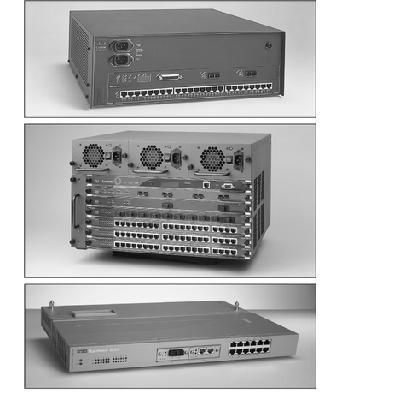

Switches
• A switch is a bridge with multiple ports
• Connects more than one segment or computer together
• Only allows traffic destined a particular segment to pass
• Reduces congestion
|
|
|
|
Routers
• Used to connect complicated networks with many segments
• Filters traffic and makes intelligent decisions on the data path
|
Gateway
• Used to convert protocols between different types of network
• Filters traffic and makes intelligent decisions on the data path
|
|
|
|
Multiplexer (MUX)
• Combines multiple signals into one to be transmitted over a single cable or media
• Not base band
|
|
|
|
|
|
|
|
|
